Olympus ∞ Stylus Zoom 140 Deluxe 35mm film camera (serial 5625195) | film🎞tested

The Olympus Infinity Stylus Zoom 140 Deluxe is a weatherproof, premium quality zoom point-and-shoot from the late 1990s. Here's the original product description:

Looking for a camera in Olympus’ gang of strikingly street smart cameras? Something in the tradition of the sleek, ultra compact, rugged design characteristic of Olympus? How does the new top-of-the-line Infinity Stylus Zoom 140 sound? Let’s take a look.
Even with an impressive 38-140mm zooming range, the rugged Stylus Zoom 140 is small and convenient ... and weatherproof. The aspherical glass lens elements are paramount to this unique, lightweight lens system that delivers incredible resolution. The glass elements are key to the compact design. Reflecting these comprehensive refinements, the Stylus Zoom 140 measures only 4.7”x 2.6” x l.8”.

Condition Notes

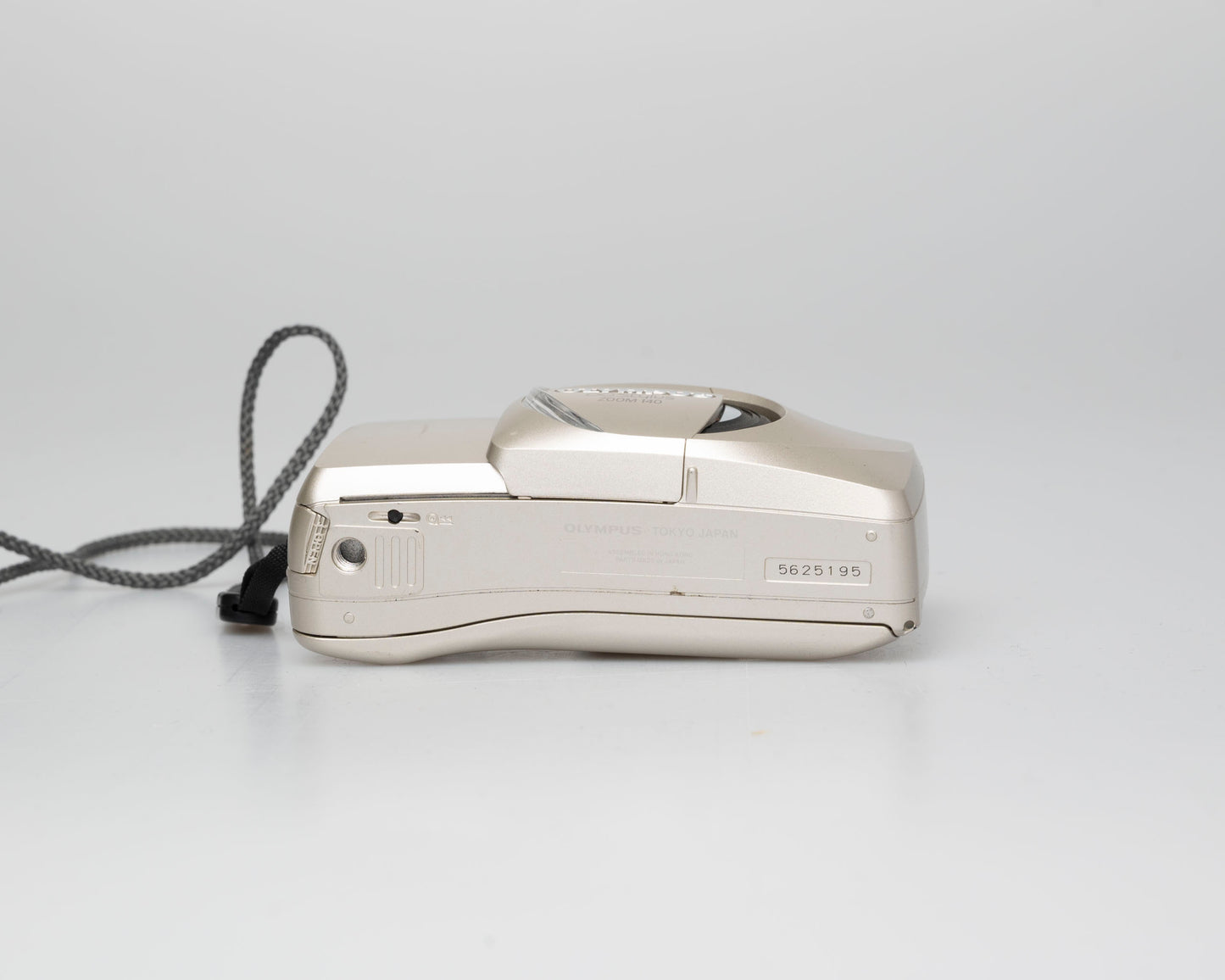

We film tested this camera and it delivered sharp, correctly exposed photos. The camera is also in excellent cosmetic condition (see photos).

Example Photos

Here are some photos that other people have taken with the Stylus Zoom 140: https://www.lomography.com/cameras/3345399-olympus-stylus-zoom-140/photos

Manual

Note: this manual is incorrectly tagged 'digital'; this is not a digital camera, it's a 35mm film camera. https://archive.org/download/Olympus_Stylus_Zoom_140_Digital_Camera_User_Manual/Olympus_Stylus_Zoom_140_Digital_Camera_User_Manual.pdf

Specifications

• Type: Full automatic 35 mm autofocus lens-shutter camera with built-in 38 ~ 140 mm zoom lens.
• Film format: 35 mm standard DX-coded film (24 x 36 mm)
• Lens: Olympus lens 38 ~ 140 mm. F4 ~ 11,
• 10 elements in 8 groups.
• Shutter: Programmed electronic shutter.
• Viewfinder: Real image zoom viewfinder (with autofocus mark, close-up correction marks, autofocus indicator and flash indicator). With dioptic adjuster.
• Focusing: Passive type multi auto-focus, autofocus auxiliary lamp lights at low light levels, effective range 4.5 m (14.8 ft) (under our company test conditions), with focus lock.
• Focusing range: Wide-angle: 0.6 m (2 ft) -(infinity) Telephoto: 0.9 m (3 ft) - (infinity)
• Exposure control: Programmed automatic exposure control, 3-zone light metering, switchable to spot metering. Auto exposure range: Wide-angle — EV2 (F4-4 sec.) to EV16 (F12.8-1/400 sec.), Telephoto — EV5 (F11 -4 sec.) to EV17 (F22.9-1/250 sec).
• Exposure counter: Progressive type with automatic reset, displayed on LCD panel.
• Selftimer: Electronicselftimer 12-sec. delay.
• Remote control (optional): Infrared remote control unit with 3-sec. delay.
• Film speed range: Automatic setting with DX-coded film with ISO 50, 100, 200, 400, 800, 1600, 3200. Film speeds other than the above will be automatically set to the next lower speed. For non DX-coded film and film with less than ISO 50, film speed is set to ISO 100.
• Film loading: Automatic loading. (Automatically advances to first frame when camera back cover is closed.)
• Film advance: Automatic film winding.
• Film rewind: Automatic film rewind (automatic rewind activation at end of film, automatic rewind stop). Rewind possible at any point with rewind button.
• Flash: Built-in flash. Recycling time: Approx. 0.5 ~ 5.5 sec. (at normal temperature with new battery). Flash working range: Wide-angle — 0.6 ~ 6.4 m (2 ~ 21 ft), Telephoto —0.9 ~ 2.3 m (3 ~ 7.5ft) with ISO 100 color negative film: Wide-angle — 0.6 ~ 12.8 m (2 ~ 42 ft). Telephoto — 0.9 ~ 4.6 m (3 ~ 15.1 ft) with ISO 400 color negative film.
• Flash modes: Auto (Automatic flash activation in low/light and backlight), Red-eye Reducing (otherwise same as in Auto), Flash Off (no flash with slowest shutter speed of 4 sec.), Fill-In (forced activation), Night Scene (for night scenes with slowest shutter speed of 4 sec. other functions operate the same as in Auto), Red-eye Reducing Night Scene (otherwise same as in Night Scene).
• Battery check: Displayed on LCD panel.
• Weatherproof: IEC Standard publication 529.
• Classification of degrees of protection provided by enclosures. Degree of protection indicated by the second characteristics numeral 4.
• Short description: Protected against splashing water. Definition: Water splashed against the enclosure from any direction shall have no harmful effect.
• Test for second numeral 4: The equipment is sprayed from all practical directions.
• The water pressure is adjusted to give a delivery rate of 10 lit./min. The test duration shall be 1 min. per m2 of calculated surface area of the enclosure with a minimum duration of 5 min.
• Power source: 3 V lithium battery (DL123A/CR123A) Dimensions: 120 (W) x 65.5 (H) x 46 (D) mm
• (4.7 x 2.6 x 1.8 in) (without protrusions such as grip etc.).
• Weight: 255 g (9.0 oz)(without battery)
